KP1315SPA

0-10v Linear Dimming Isolated PWM Dimming Chip

KP1315SPA is a high efficiency, quasi-resonant primary constant current LED driver controller that supports PWM dimming and 0-10V dimming with high precision and dimming depth, suitable for applications such as medium and high power isolated lighting power supply. The KP1315SPA has an integrated high voltage start circuit for fast start.

At the same time, the chip works in the quasi-resonant control mode, which can greatly reduce the switching loss and improve the EMC while improving the efficiency. The KP1315SPA is also integrated with a high-precision constant current control algorithm, which can easily achieve high constant current accuracy, as well as excellent line voltage and load adjustment rate. The KP1315 integrates a variety of protection functions: VDD undervoltage protection (UVLO), overheat protection (OTP), cycle duration current protection (OCP), Short circuit protection (SCP), LED open circuit protection (OVP), etc.

Product features:

Supports PWM dimming and 0-10V dimming

• High constant current accuracy ±3%@100% LED current

• Wide current dimming range from 2% to 100%

• PWM dimming compatible frequency 600Hz~10kHz

• Low standby power consumption:

<10mW@PWM Dimming

< 60mW@0-10V Dimming

• High efficiency quasi-resonant mode operation

• Integrated high-voltage start circuit

• Wide VDD operating range 8V to 32V

• Precise output overvoltage protection

• Excellent linear adjustment and load adjustment

• No noise throughout dimming

• Integrated protection features:

• LED open and short circuit protection (OVP, SCP)

• Weekly Term Current Protection (OCP)

• Over temperature Protection (OTP)

• Front blanking (LEB)

• Encapsulation type SOP-8

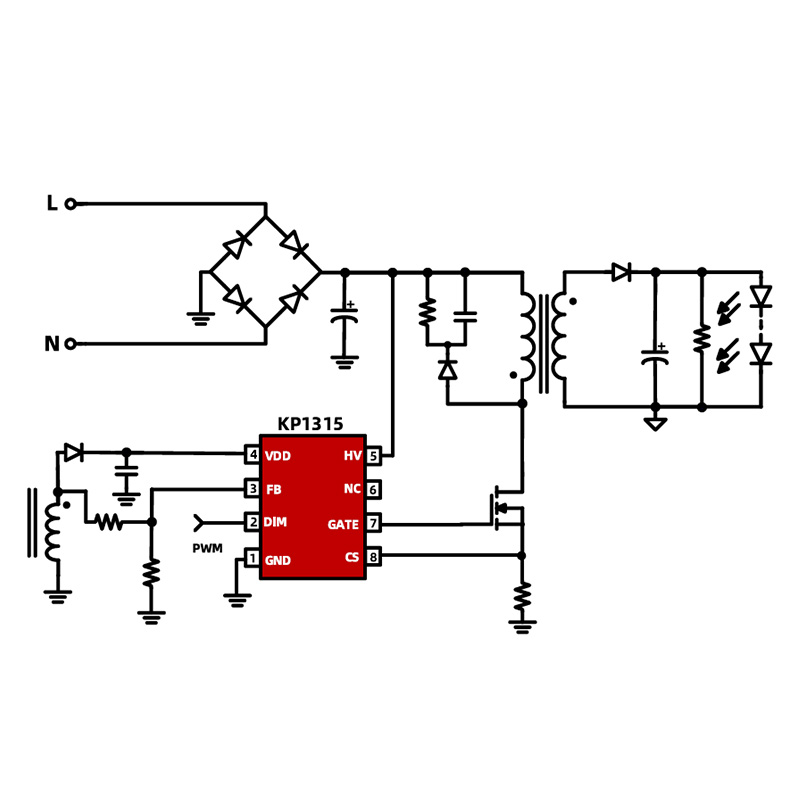

Typical applications:

• High power LED lighting
